Curt

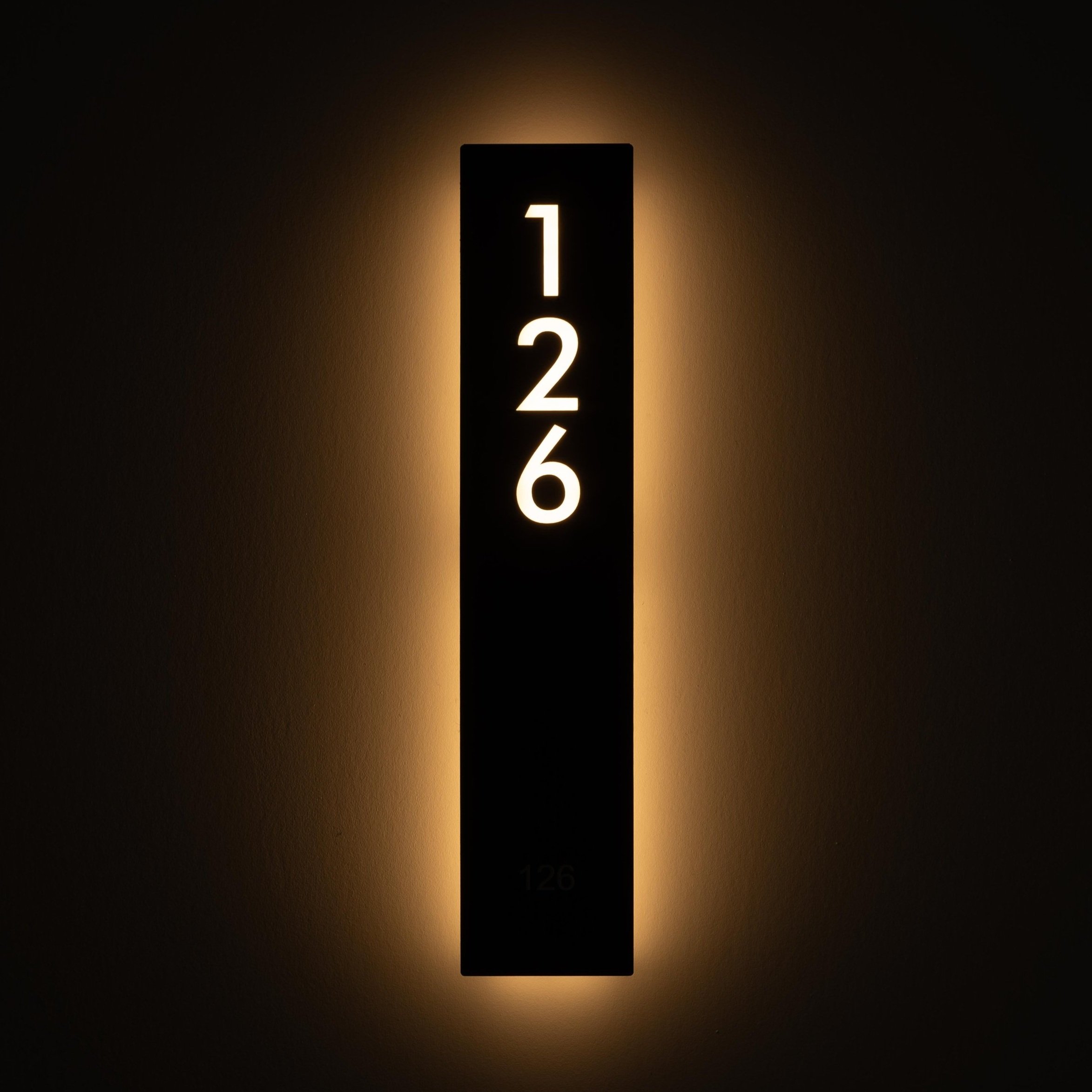

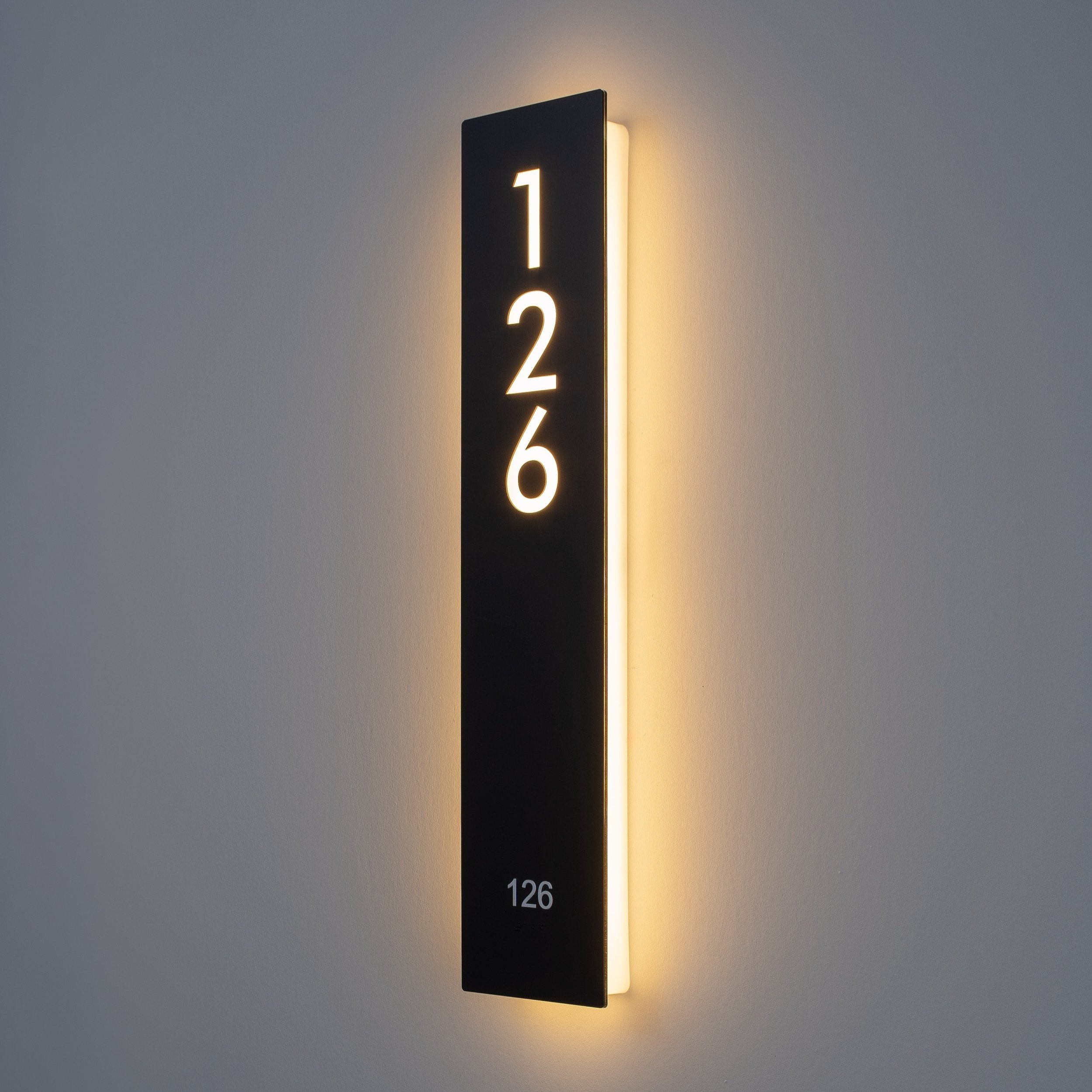

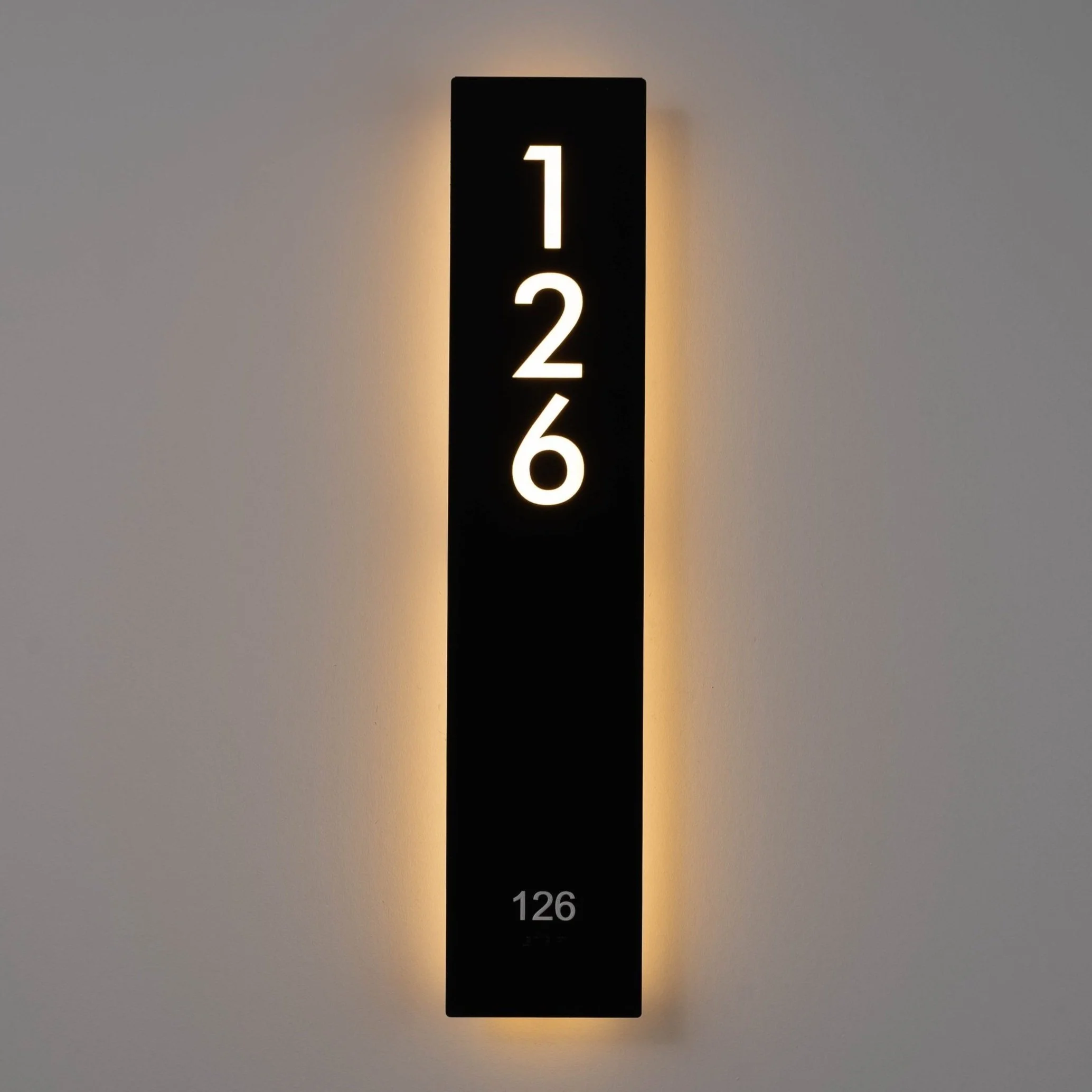

Curt provides the perfect multi-family solution, the ability to provide lighting next to each unit number combined with easy-to-read numbers. Typically, the designer needs to select a light fixture in addition to a numbered plaque. Now both are available in one combined fixture.
Numerous fonts and braille type available. Ultra Low Profile (1.44”).
Curt provides the perfect multi-family solution, the ability to provide lighting next to each unit number combined with easy-to-read numbers. Typically, the designer needs to select a light fixture in addition to a numbered plaque. Now both are available in one combined fixture.
Numerous fonts and braille type available. Ultra Low Profile (1.44”).
Curt provides the perfect multi-family solution, the ability to provide lighting next to each unit number combined with easy-to-read numbers. Typically, the designer needs to select a light fixture in addition to a numbered plaque. Now both are available in one combined fixture.
Numerous fonts and braille type available. Ultra Low Profile (1.44”).
Personalized

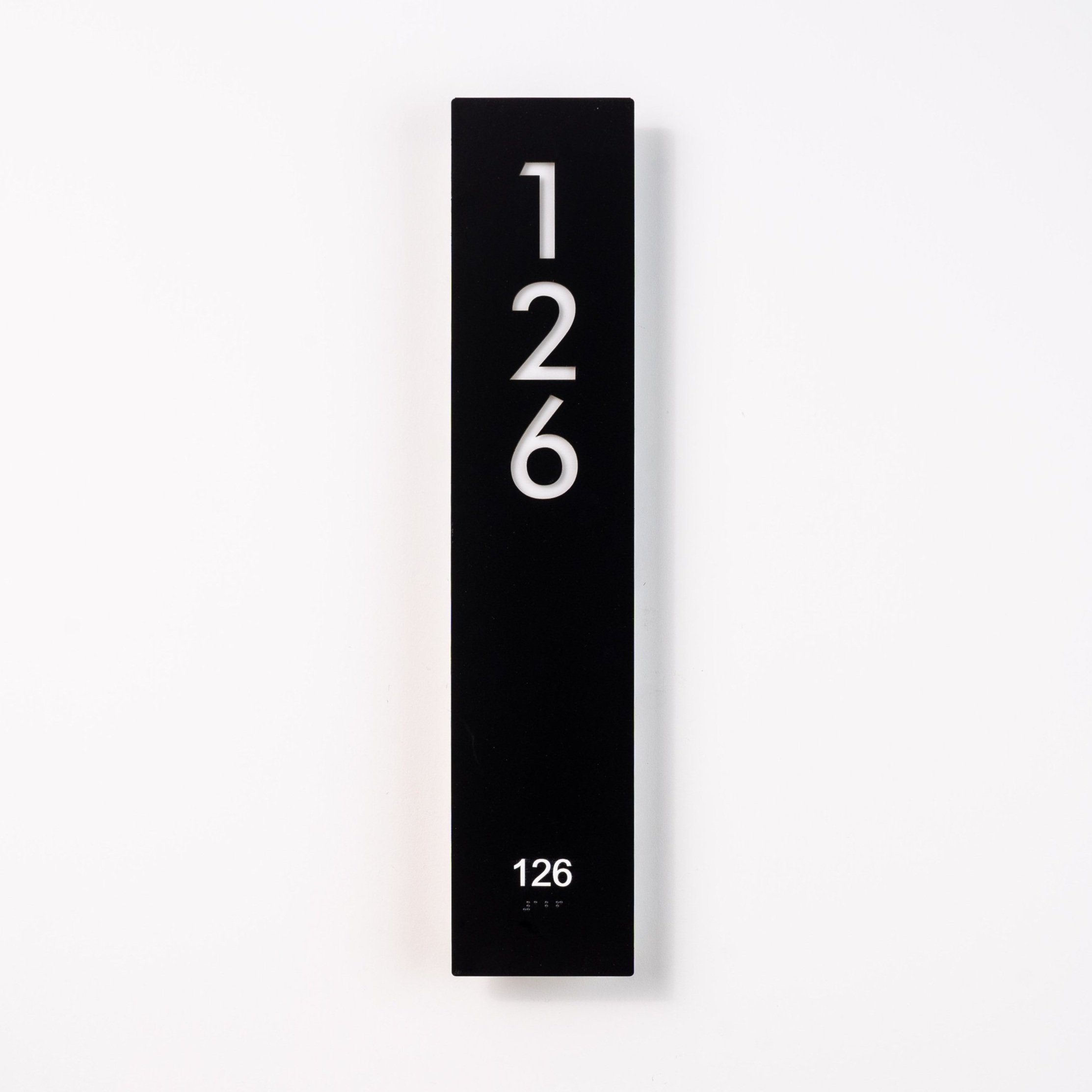

Select your finish and add an optional door number plaque with door number and braille.
Value
Highly personalized design using best-in-class materials and LED module all at an excellent price.
Tech Specs
Specifications:
Input Voltage: 120Vac standard. 277Vac optional (MOQ may apply).
State of the art LED module, field serviceable/replaceable.
90+ CRI
Title24 JA8
UL Damp Listed
ADA
BAA
Dimming
ELV/Triac Dimmable (100-10%)
Adjustable light level via LumenSelect. (High, Medium, Low. 10W High, 6.5W Medium , 3W Low)
Finishes
Brushed Aluminum
Graphite Metallic
Black
CCT
2700K, 3000K, 3500K, 4000K
Downloads
Spec Sheet
Unit Numbers Specifications Template (to complete when ordering)
ADA Door Numbers Order Guide
IES File
Have questions about our Curt Wall Sconce?
Inquire directly with a member of the Alva team below
| Model | Watts | Height | Width | Depth | Weight | |
|---|---|---|---|---|---|---|
| Curt | 10W | 24" | 5" | 1.44" | 6 lbs |
